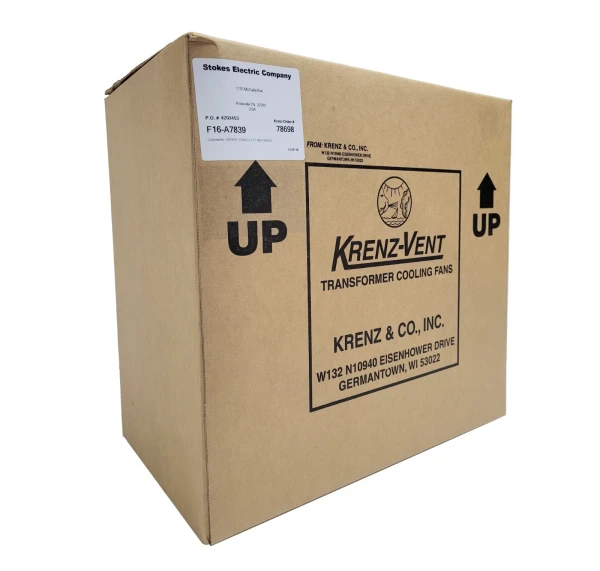

NEW SEALED ~ Krenz-Vent F16-A7839 Transformer Cooling Fan w/ Motor A4P17NZ107B
NEW SEALED
Includes:
A4P17NZ107B Motor & Mounting Hardware Shown
The Krenz-Vent F16-A7839 is a 16-inch transformer cooling fan designed for high-airflow industrial applications.
Performance & Electrical Ratings
Airflow: 4,500 CFM
Horsepower (HP): 1/4 HP
Speed: 1,750 RPM
Voltage: 208-230V
Phase/Frequency: 1 Phase, 60 Hz
Full Load Amps (FLA): 1.7A
Power Consumption: Approximately 308 Watts
Sound Level: 68.2 dBA (measured at 2 meters)
Physical & Mechanical Features
Dimensions: 20.5" Wide x 19" High x 15" Deep
Blade: 16-inch diameter, one-piece 4-wing cast aluminum
Housing: Hot-dip galvanized steel venturi housing and guards (OSHA compliant)
Motor Type: Totally Enclosed Non-Ventilated (TENV) with IP54 enclosure
Frame/Shaft: NEMA 48 frame with a .625" diameter 416 stainless steel shaft
Bearings: Permanently lubricated, double-sealed ball bearings
Temperature Class: Class F insulation with Class B temperature rise; rated for 55°C ambient temperature
Installation Details
Mounting: 0.44" x 1.44" mounting slots
Connection: 1/2" NPT connection hole in integral conduit box
Drainage: Equipped with condensation drain holes for versatile orientation (horizontal, shaft up, or shaft down)
Ship: 23x22x13, 43lbs
