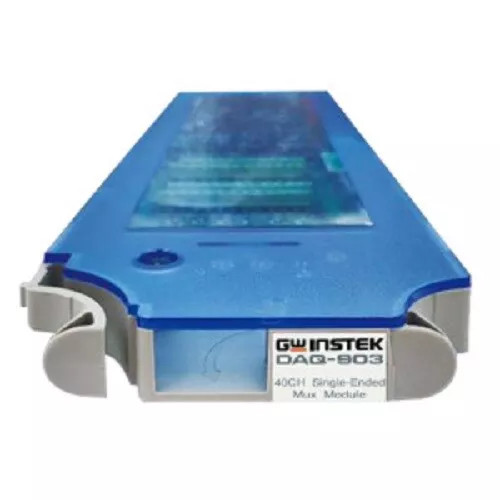

Instek DAQ903 Data Logger NEW

Features:

• 40-Channel Single-Ended Multiplexer
• Type: Single-wire switching (armature) suitable for common-low applications
• Speed: Scanning speed can reach 80 channels per second
• Max Volts: 300V
• Bandwidth: 10 MHz
• Thermal Offset: <1 μV
• Built-in temperature cold junction reference
• No four-wire measurements

The Instek DAQ-903 can switch 40 single-wire inputs per module. It can be used for common-low applications such as battery testing, component characterization and desktop testing. The low-voltage connection is isolated from ground and can be floated up to 300 V. The DAQ-903 also supports all 2-wire internal measurements (except current).
