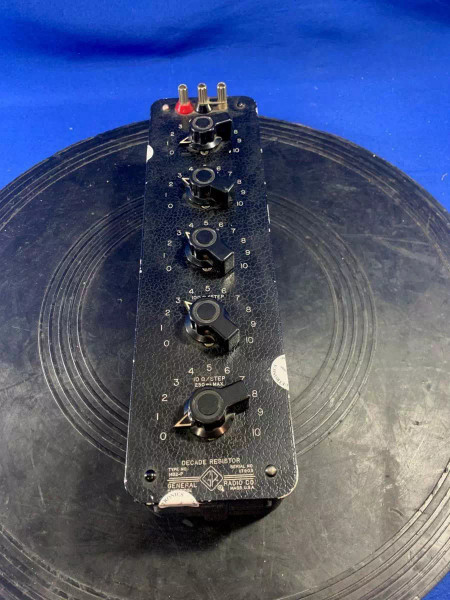

General Radio 1432P Decade Resistor

Features:

• Total Resistance: 1,111,100 ohms
• Steps: 10 ohms
• Number of Dials: 5
• Type 510 Decades Used: C, D, E, F, G
• Zero Resistance (Ra): 0.002 to 0.003 Ω per dial at dc; 0.04 Ω per dial at 1 Mc; proportional to square root of frequency at all frequencies above 100 kc
• Zero Inductance (Lo): 0.10µh per dial
• Effective Shunt Capacitance (C): This value is determined largely by the highest decade in use
• Temperature Coefficient of Resistance: Less than +/-0.002% per degree Centigrade at room temperature
• Accuracy of Adjustment: All cards are adjusted within +/_0.05% of the stated value between card terminals
• Terminals: Jack-top binding posts set on General Radio standard 3/4-inch spacing. Shield terminal is provided
• High accuracy
• Resistors are adjusted so that resistance increments are always correctly indicated
• Good frequency characteristics
• Excellent stability
• Unaffected by high humidity
